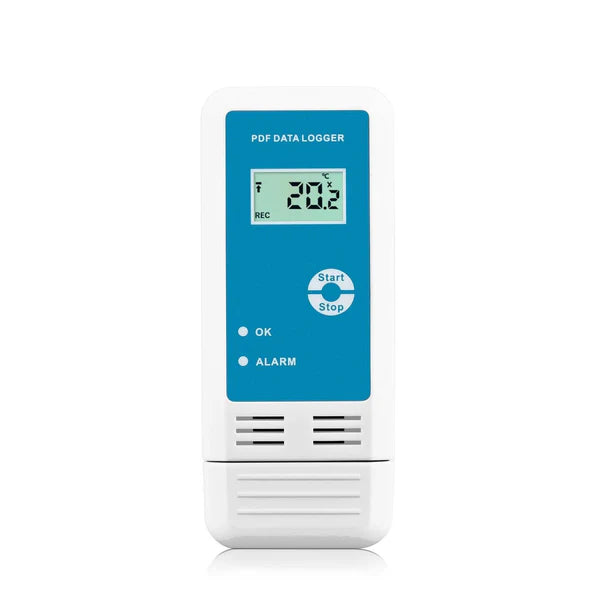

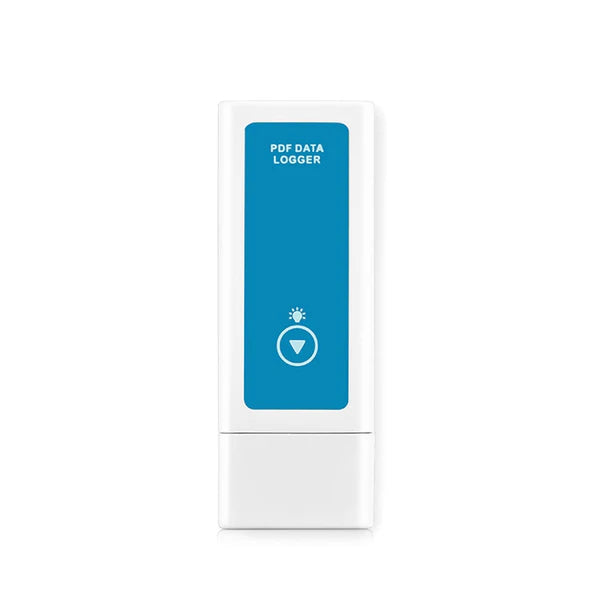

Multi-Use Temp USB PDF Data Logger w/ Display

Compact size, multi-use, configurable, PDF auto-generation

These multi-use, compact data logger are capable of measuring temperature with an accuracy of ±0.3°C (-40°C to 70°C), ±0.5°C (else) over its range and has an IP40/IP30 protection rating. It can be easily configured using the PoChain software (available for download on the website) and it starts logging immediately or with a delay, depending on your preferred configuration.

After the logging task is completed, connect the data logger to any computer with a USB port, and a PDF file will be generated automatically.

Data analysis & Data Export

Once connected to a computer with installed PoChain software, this data logger allows for efficient and comprehensive data analysis and exportation in various forms such as xls, csv, pdf, txt, and cin, to a designated location on the user's computer.

Up to 6 marker points

This data logger supports data marking up to 6 points. In the process of logging, the user can use the key to enter mark mode (MK), then press the key to mark the data.

Re-calibratable assures long time use in tolerance

Each unit is shipped with a calibration report to assure accuracy from an ISO/IEC 17025:2017 conforming calibration laboratory and indicates traceability of measurements to the SI units through NIST. It can be recalibrated using the PoChain software with 2 points calibration by any lab with calibration capability (not recommended to be done by user) or our lab as well.

STN’s temperature logger is a good choice for a wide range of applications including transportation, storage, production, HVAC and others. It complies with food and drug industry specifications.
