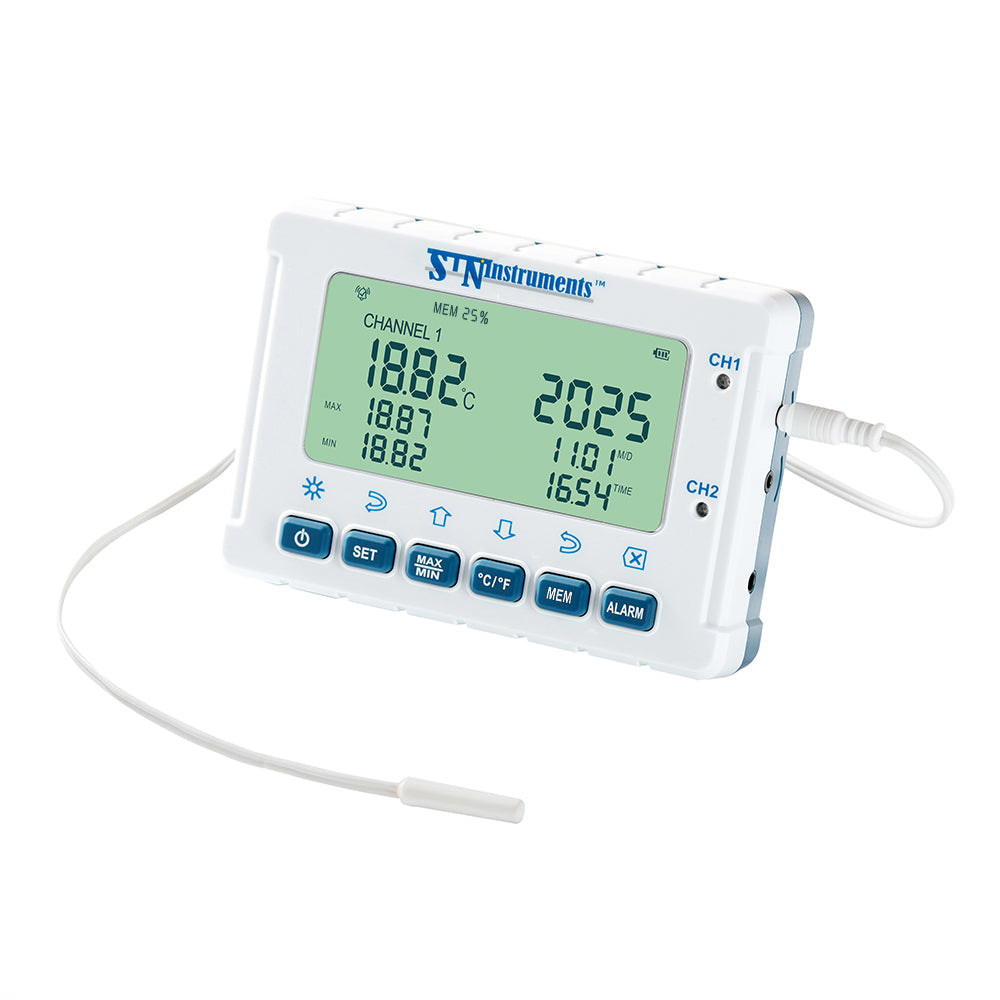

MiraThermo - Refri/Freezer temperature monitor with event recording/data logging (single-channel)

Regular price
$98.00
Regular price
Sale price
$98.00
  • Single-channel designed for refrigerator/ freezer temperature monitoring
  • Measurement range: -50°C to 70°C & Accuracy: ±0.2°C
  • 3-line display & RS232 output
  • Display max/min information for previous 24 hours and previous 7/31 days
  • Visual/audible alarm
  • Non-volatile memory, no data loss when power off
  • Low power consumption and long standby time
  • Data logging memory up to 320,000 data groups
  • Calibration procedure provided to ensure the accuracy
  • Calibration certificate for each unit with data traceable SI unit through NIST
Sku: S21222

Shipping: 3-5 business days

MiraThermo - Refri/Freezer temperature monitor with event recording/data logging (single-channel)
MiraThermo - Refri/Freezer temperature monitor with event recording/data logging (single-channel)
  • Description
  • Specifications
  • Manual and Resources

This professional-grade thermometer series is engineered for high-accuracy and reliable temperature monitoring in refrigerators, freezers. It is available with or without built-in data logging, making it ideal for cold chain monitoring, laboratory environments, and pharmaceutical storage applications.

Each unit uses a high-grade NTC thermistor or Pt1000 platinum sensor to ensure precise and consistent temperature measurement. Probe options include a plastic-encapsulated  (5 mm diameter × 25 mm length with a 3-meter cable, fully submersible from -50°C to 70°C), stainless steel probes (5 mm diameter × 75 mm length and 4 mm diameter ×150mm length).

The device features a single channel, 3-line LCD display that simultaneously shows current, maximum, and minimum temperatures for two sensor inputs. By pressing the MAX/MIN button, users can view timestamped high/low readings from the past 24 hours (hourly), 7 days (daily), or 31 days (daily).

Audible and visual alarms immediately alert users to any temperature excursions, supporting regulatory compliance and safety standards.

Power is supplied by three AAA batteries or an included DC adapter. The unit offers flexible installation options including handheld use, flat surface placement, stand mounting, or magnetic wall mounting—making it adaptable to various work environments.

Each thermometer is factory-calibrated through a multi-point process and comes with a calibration certificate traceable to SI units via NIST, ensuring measurement reliability and compliance in critical temperature-sensitive applications.

Measurement range

-50°C to 70°C

Unit

°C, °F

Resolution

0.01

Accuracy

±0.2°C

Probe type

NTC, Pt1000

Probe shape

BulletΦ5*25mm; short Φ5*75mm; long Φ4*150mm

Probe wire length

3m

probe connector

2.5 mm audio jack

Export file fomats

CSV

Data storage capacity

320,000 groups

Memory

Non-volatile, no data loss when power off

Sampling interval (for meter with datalogging function)

from 00:01 to 1:00 (hours:minutes) configurable

LCD refresh interval

2s, 5s, 10s, 30s and 60s configurable

Data export

Flash drive through USB port

Date/time

Configurable

Alarm values

Configurable

Alarm fuction

ON/OFF Selectable

OIO (Out In Out): Defines the time window during which multiple alarm occurrences are recorded as a single event

Configurable from 5 mins to 60 mins.

Communication/Baud rate

RS232/2400, 9600, OFF

Factory default

Resettable

Operation condition

-30°C to 50°C, no condensation

Power supply

Adapter/ 3 “AAA” batteries

Shell material

ABS

Dimensions/Weight

3.25"X4.6"X1"/176g

Calibration

4 points accross the range

Calibration report

Included with each unit

Datasheet

Manual
