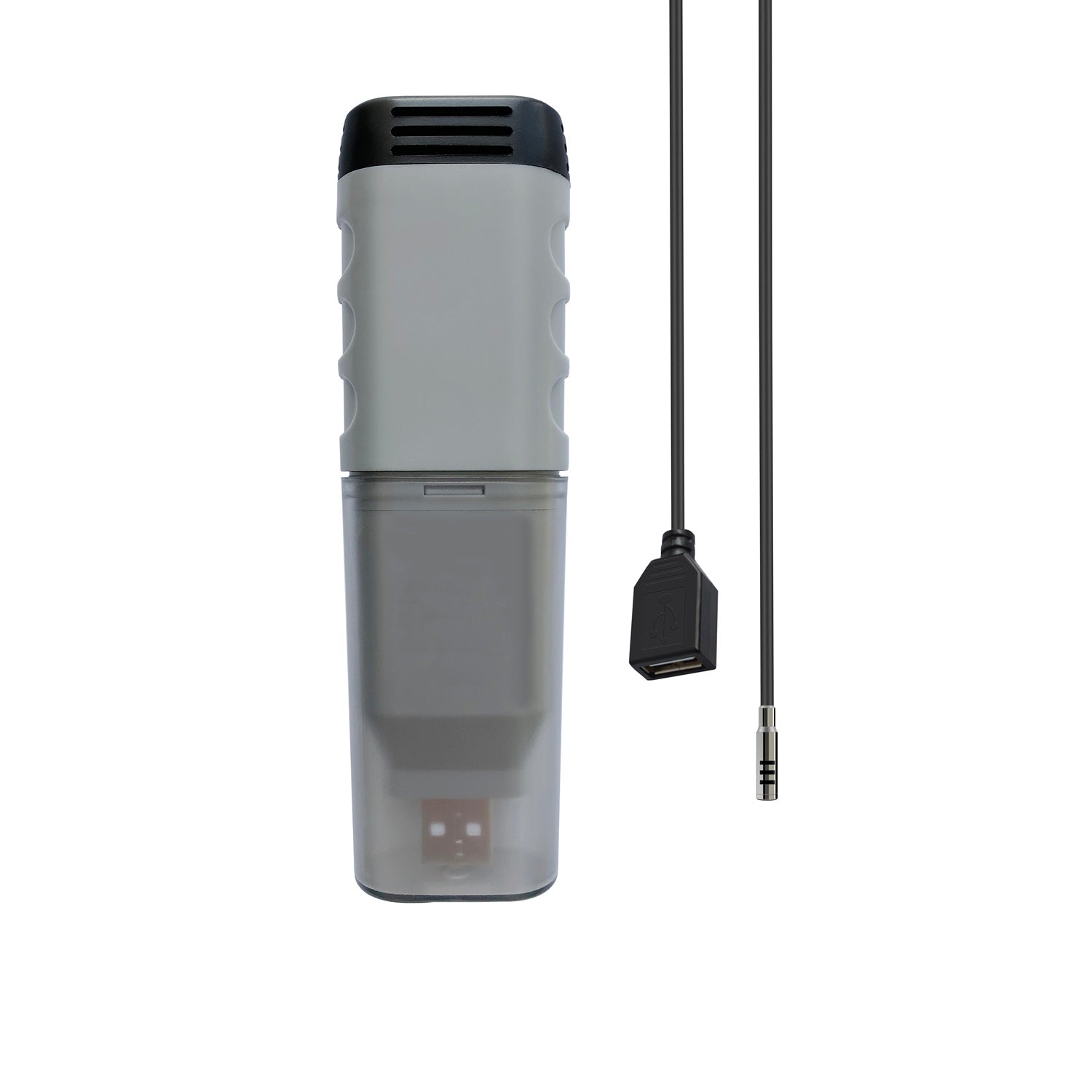

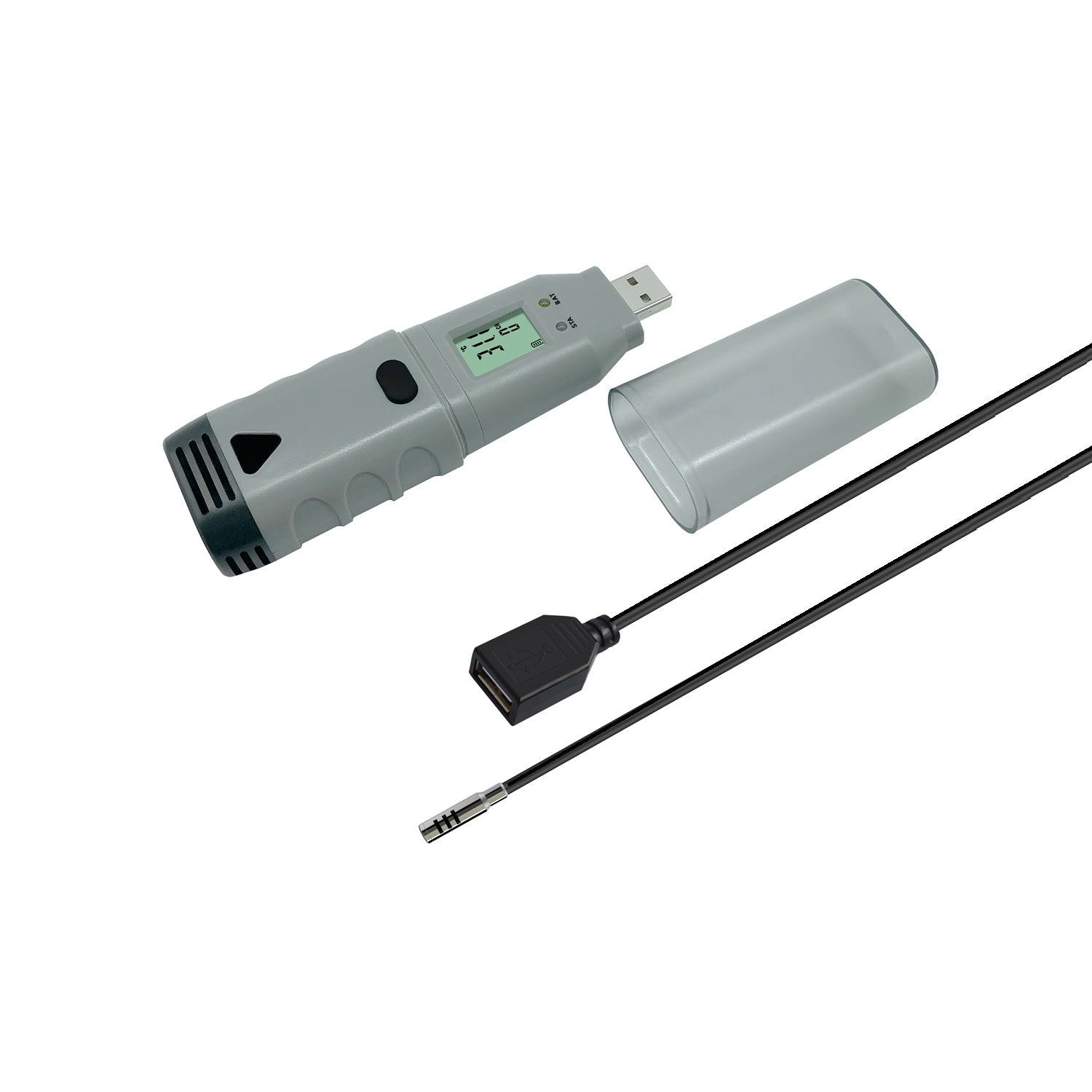

Multi-Use Temp+RH+Dewpoint USB Data Logger w/ Display & Ext Probe

$138.89
$138.89
  • External RH+T sensor
  • Measurement range: -40°C to 80°C & 0.1%rh to 99.9%rh
  • Accuracy: T: ±0.3°C, RH: ±2.5%rh (20%rh to 80%rh), ±3.5%rh (else)
  • Dew point temperature data & curve output
  • PC software for configuration & data analysis & calibration
  • Large storage capacity up to 32000 records
  • Non-volatile memory & No data loss when power off
  • LCD display & LED status and alarm indication
  • Sampling interval: 2 seconds to 12 hours
  • 3.6V 1/2AA lithium battery (1200mAh), user replaceable
  • Protection Class: IP40 & Certification: CE, ROHS
  • Calibration report included with each unit
  • Test points: 20%rh, 50%rh and 80%rh @ 25°C and 25°C on the report
Sku: 36877

Shipping: 3-5 Business Days

Multi-Use Temp+RH+Dewpoint USB Data Logger w/ Display & Ext Probe
Multi-Use Temp+RH+Dewpoint USB Data Logger w/ Display & Ext Probe

$138.89
  • Description
  • Specifications
  • Manual and Resources

This temperature and humidity data logger offers configurable settings via DGraph Pro software, downloadable from the software tab. Users can initiate logging immediately or schedule a delayed start depending on monitoring requirements. Once the logging task is complete, the data logger connects to a PC via USB. The DGraph Pro software allows seamless data download in .dlg format, which can then be exported as TXT, CSV, XLS, JPG, or BMP files for flexible analysis and reporting.

Real-time monitoring is supported, enabling live temperature and humidity display directly on the computer during logging. This feature enhances on-site analysis and operational visibility. The device also records dew point temperature, which is included in the exported datasets and viewable through the software for further environmental diagnostics.

Each unit is shipped with a calibration certificate from an ISO/IEC 17025:2017-conforming lab, ensuring accuracy and traceability to SI units through NIST. Recalibration of both temperature and humidity parameters can be performed through the DGraph Pro software at two calibration points, either in qualified labs or through STN Instruments’ calibration service.

Ideal for laboratories, warehouses, production areas, and HVAC systems, this logger offers long-term performance with reliable accuracy, efficient data export, and real-time diagnostics for diverse environmental monitoring needs.

Probe type

External RH+T probe

Unit

°C, °F & %rh

Resolution

0.1°C & 0.1%rh

Measurement range

-40°C to 80°C & 0.1%rh to 99.9%rh

(Dew point temperature data & curve output)

Accuracy

T: ±0.3°C, RH: ±2.5%rh (20%rh to 80%rh), ±3.5%rh (else)

Report generation

dlg file generated, can be saved as txt, csv, xls, jpg and bmp in the software

Data storage capacity

32000 records

Memory

Non-volatile memory, no data loss when power off

LCD display auto-off time

30 seconds

Sampling interval

User configurable from 2 seconds to 12 hours

High and low alarm values

User configurable

Alarm type

Single time or cumulative, user configurable

Start recording mode

Press and hold the button until the green LED light on

Start immediately or start with preset time by the software

Stop recording mode

Press button to stop

Automatic stop when the memory is full

By software when connected to computer

Operation/storage temperature

-35°C to 80°C (The LCD will not display normally below -10°C)

Communication interface

USB 2.0

PC Software

DGraph Pro (Windows 7/8/Vista/10 32/64bits) website downloadable

Power supply

3.6V 1/2 AA lithium battery (1200mAh), user replaceable

Battery life

About 2 years @ 1 minute sampling interval, 25°C

Protection Class

IP40

Shell material

ABS

Dimensions/weight

120mm*37mm*23mm/67g

Certification

CE | ROHS

Calibration

2 points calibration by software

Calibration report

Calibration report included with each unit

Test points

20%rh, 50%rh and 80%rh @ 25°C abd 25°C on the report

Datasheet

Manual
