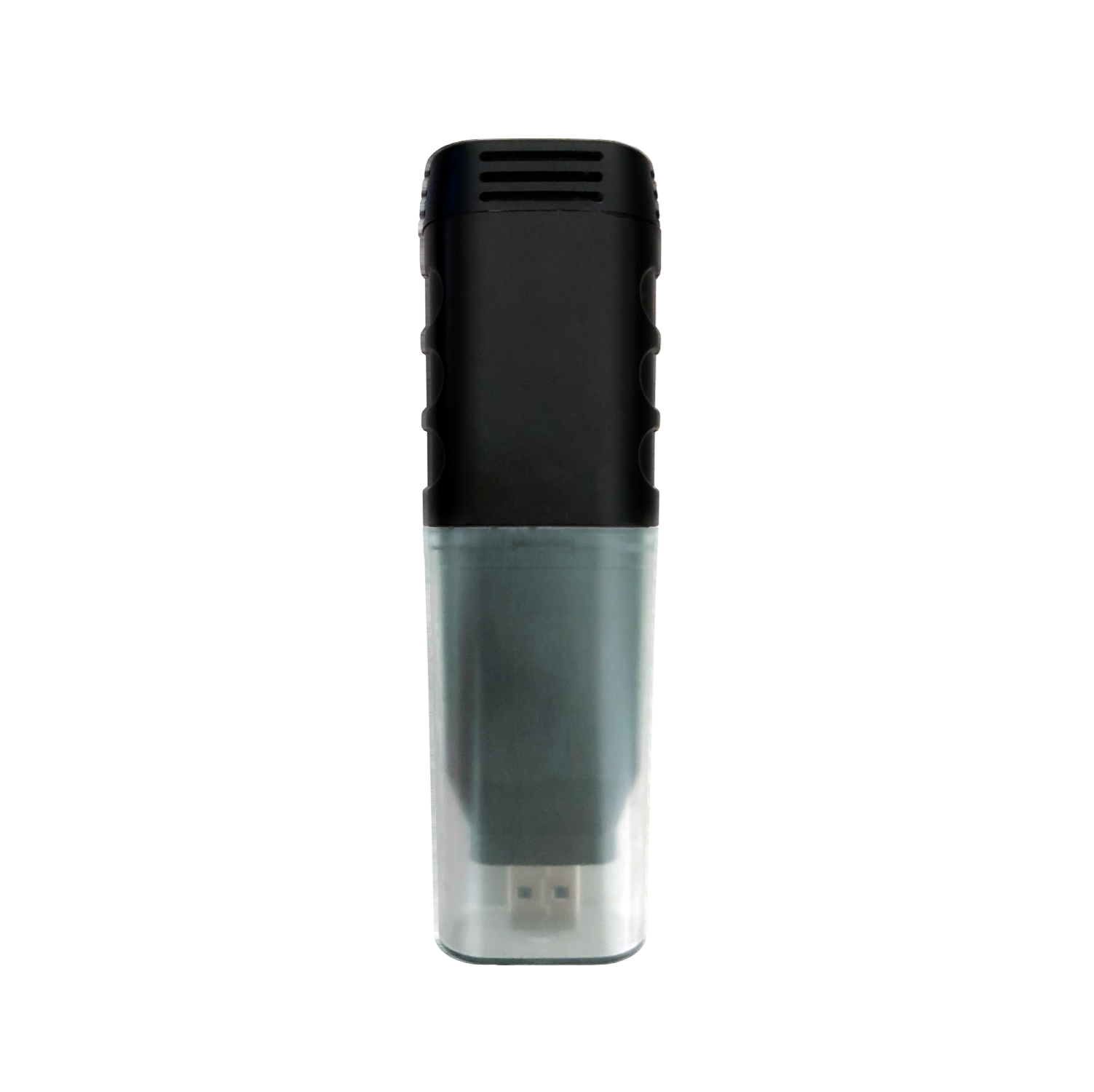

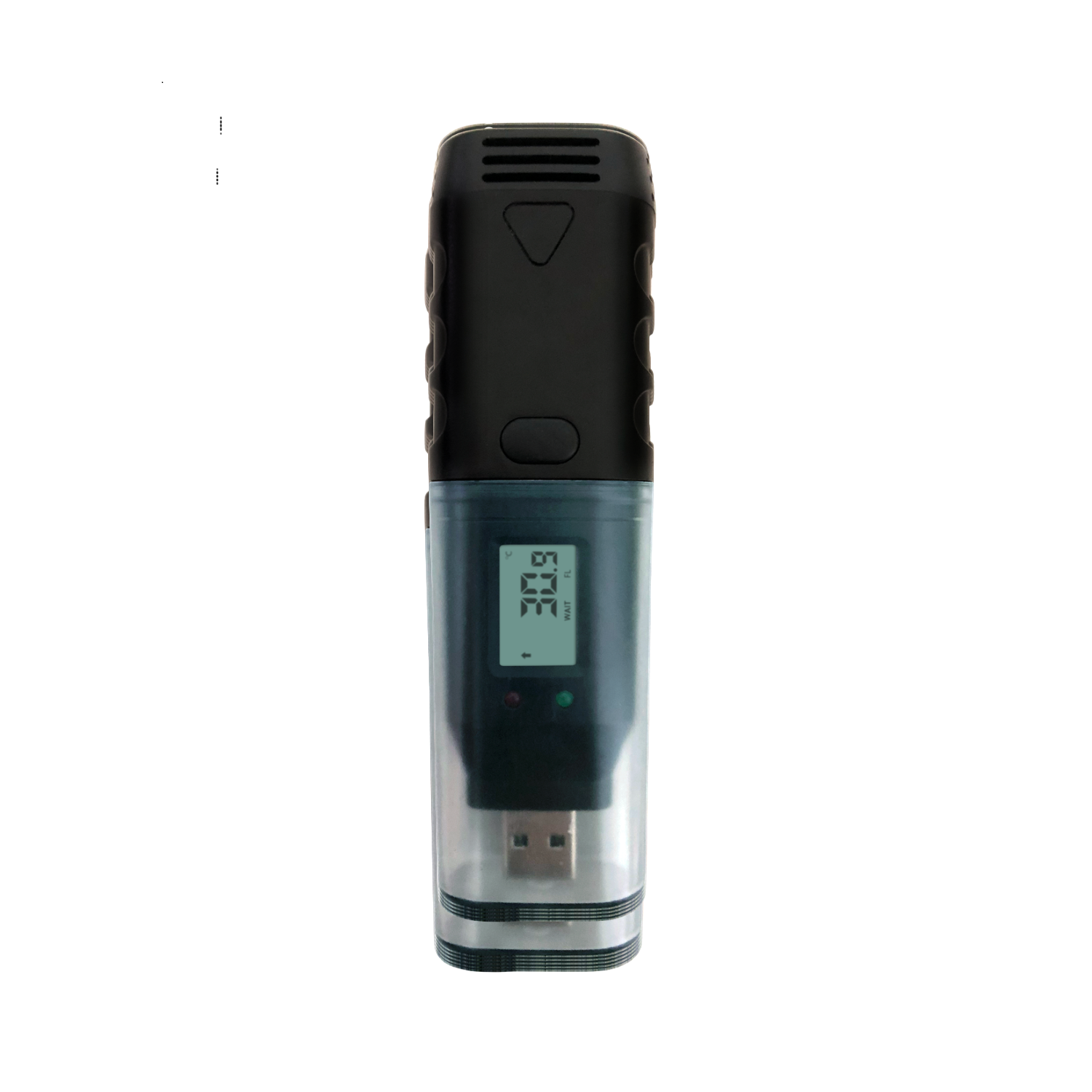

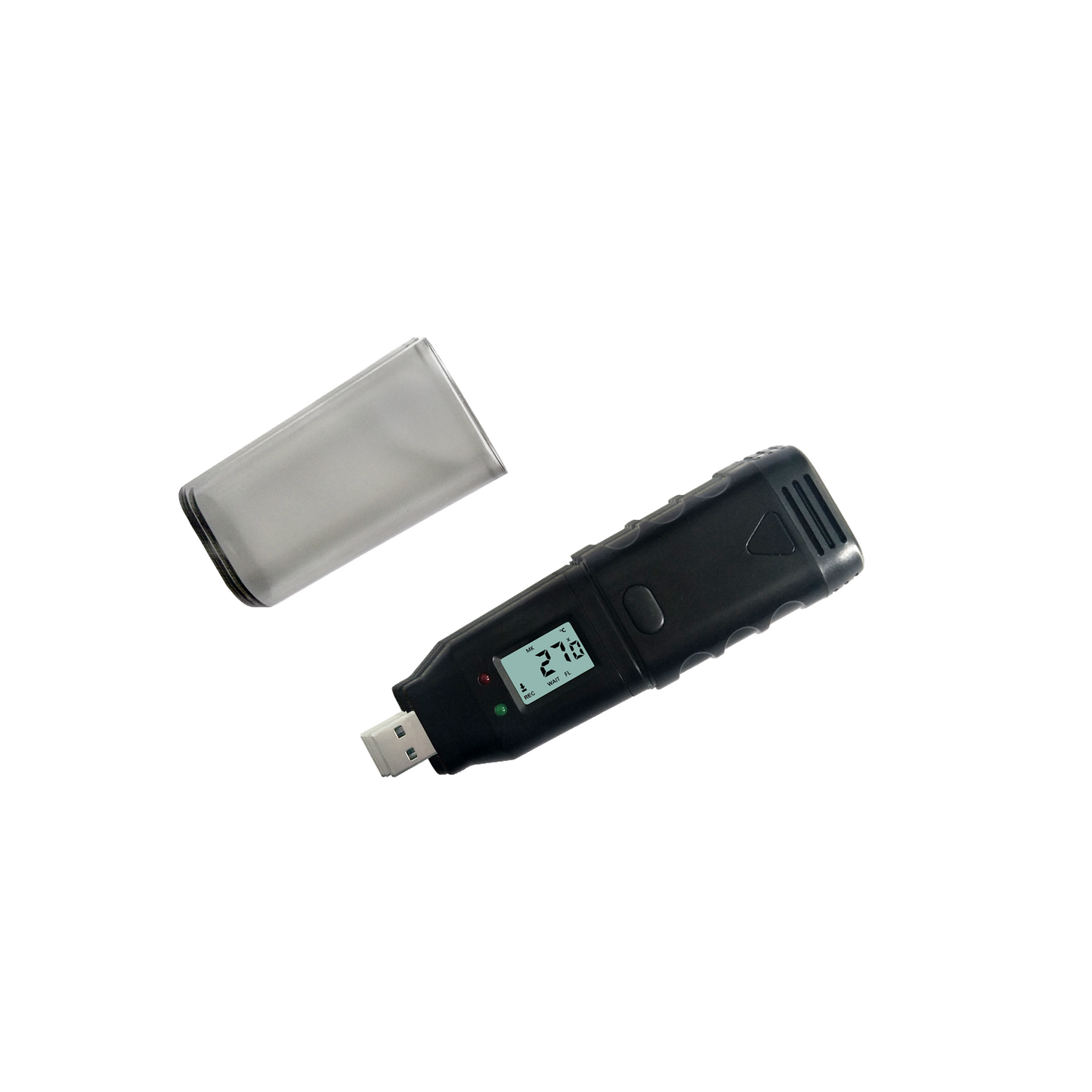

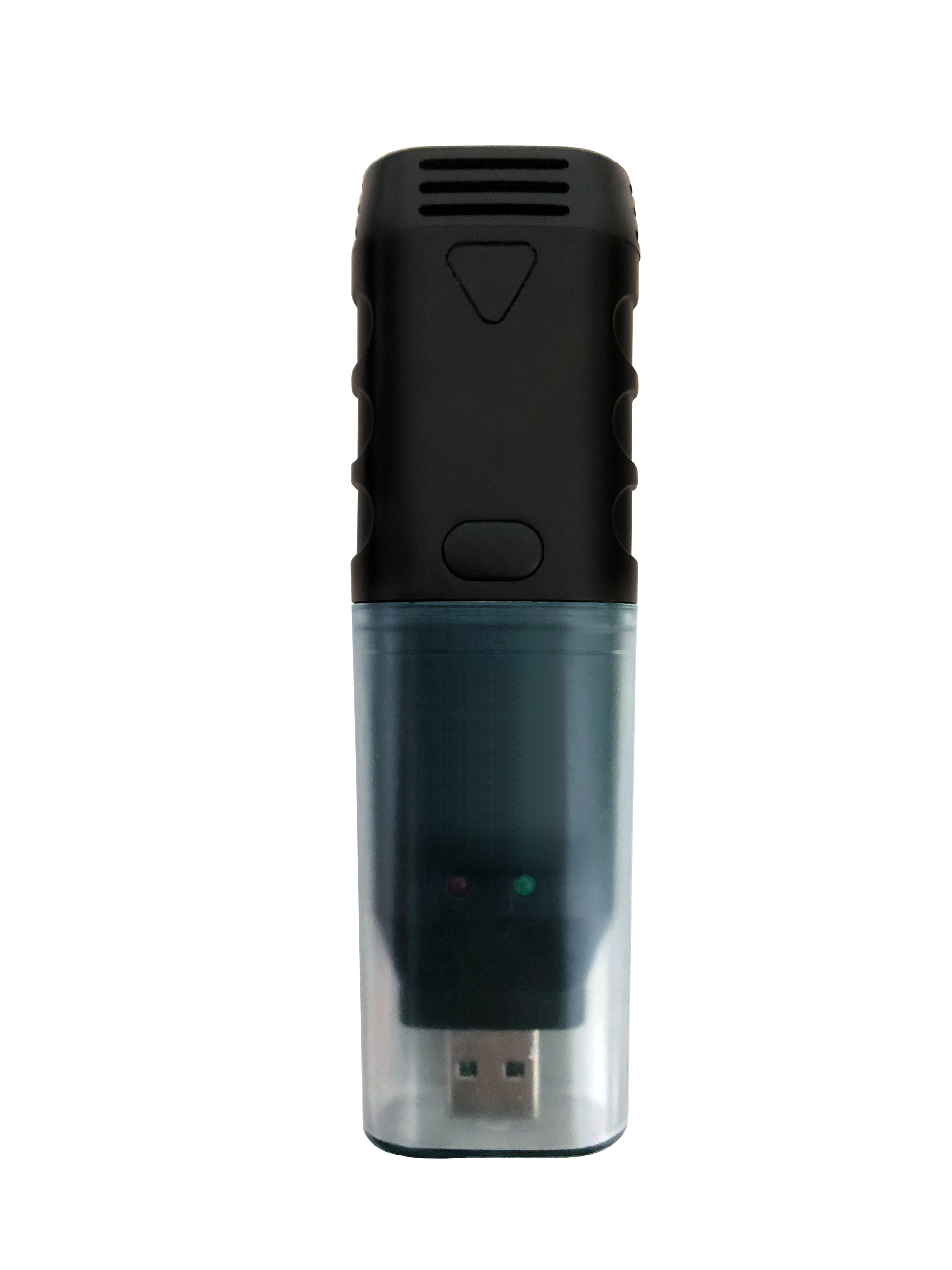

High Accuracy Multi-Use Temp USB PDF Data Logger

This compact and versatile temperature data logger is engineered for multi-use monitoring in transportation, storage, production, and HVAC environments. With an accuracy of ±0.2°C (-40°C to 70°C) & ±0.3°C (else) and IP56-rated protection, it provides reliable performance across a wide range of applications, including food and pharmaceutical logistics.

The device is easily configured using PoChain software, which is available for download on the STN’s website. Users can set the logger to begin recording immediately or with a delayed start, depending on operational needs. Once data logging is complete, the unit connects directly to any computer via USB and automatically generates a compliant PDF report—no software installation required for basic report access.

For in-depth data analysis and customized export, users can connect the device to a computer running PoChain software. The software supports exporting data in multiple formats, including XLS, CSV, PDF, TXT, and CIN, allowing for smooth integration with record-keeping systems and quality assurance documentation.

The logger supports up to 6 data marker points, which can be manually triggered during the recording process. Pressing the key in mark mode (MK) allows users to flag specific events or time points for easier review and correlation later in the analysis phase.

Each unit includes a calibration certificate from an ISO/IEC 17025:2017 accredited lab, with full traceability to SI units through NIST. For long-term use, the device can be re-calibrated through PoChain software at up to 6 calibration points. This process should be performed by qualified laboratories—either by STN or any facility with proper calibration capabilities—to maintain accuracy and data integrity over time.

This high-performance temperature logger complies with food safety and pharmaceutical industry standards, making it an excellent choice for cold chain monitoring, warehouse storage validation, and temperature-sensitive production control.
