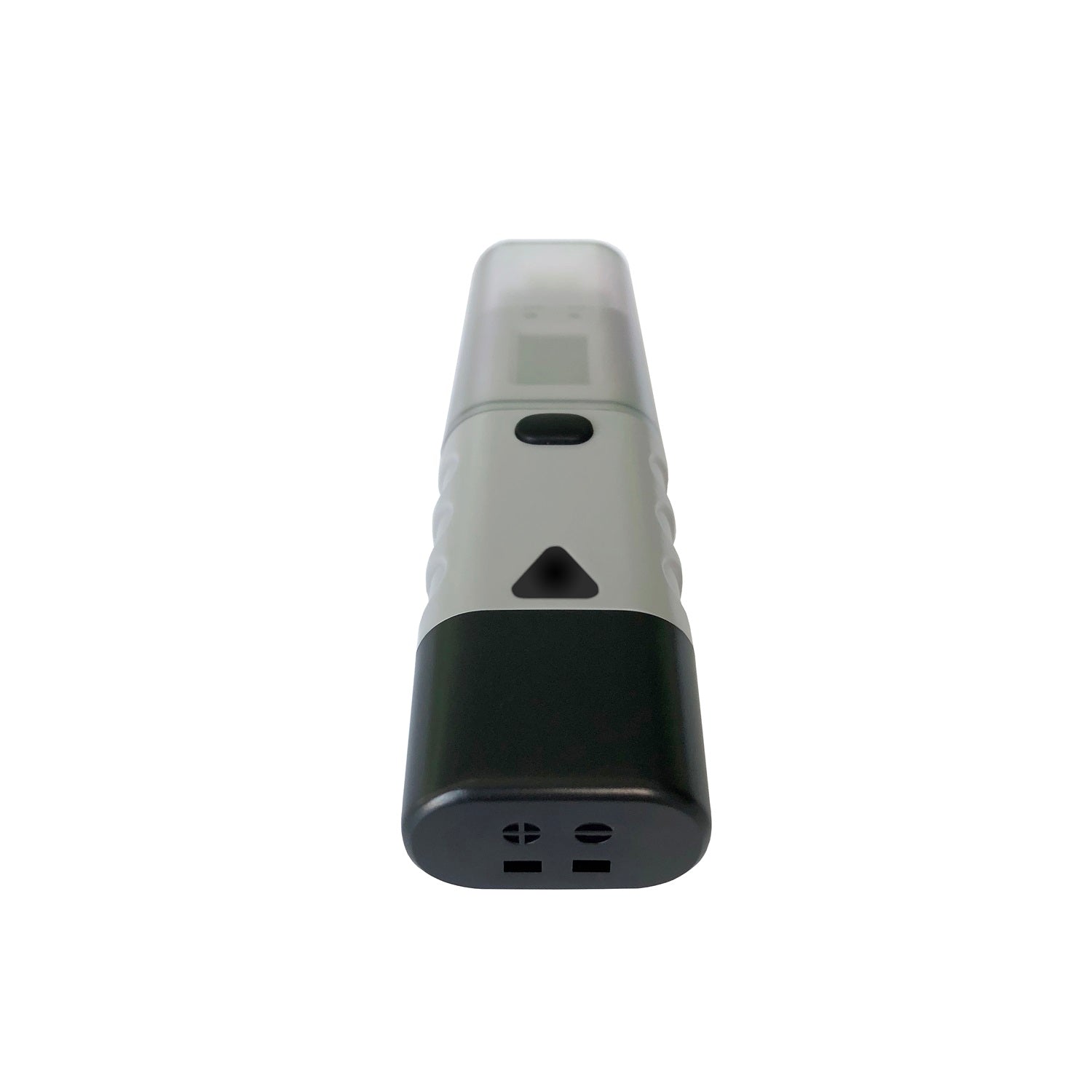

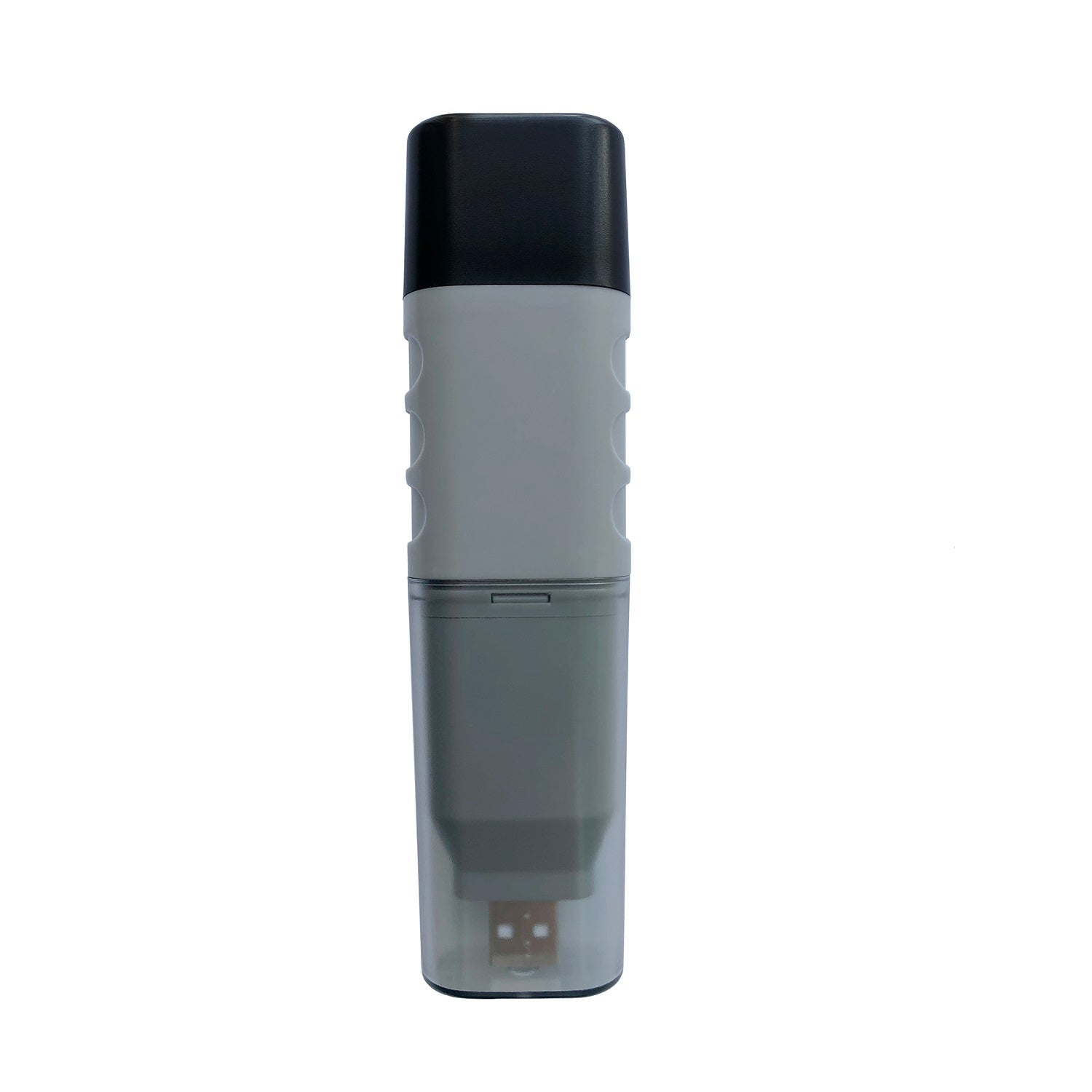

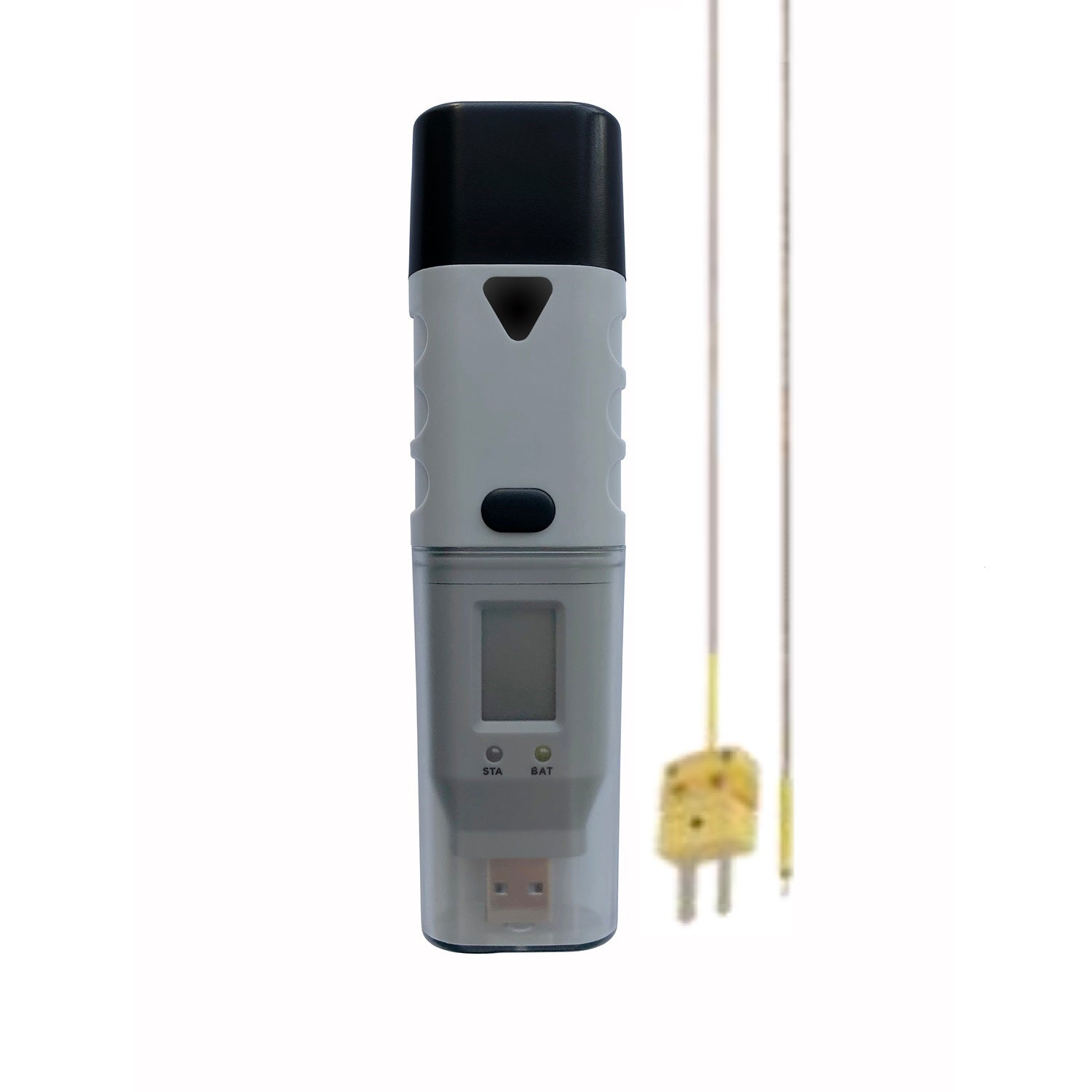

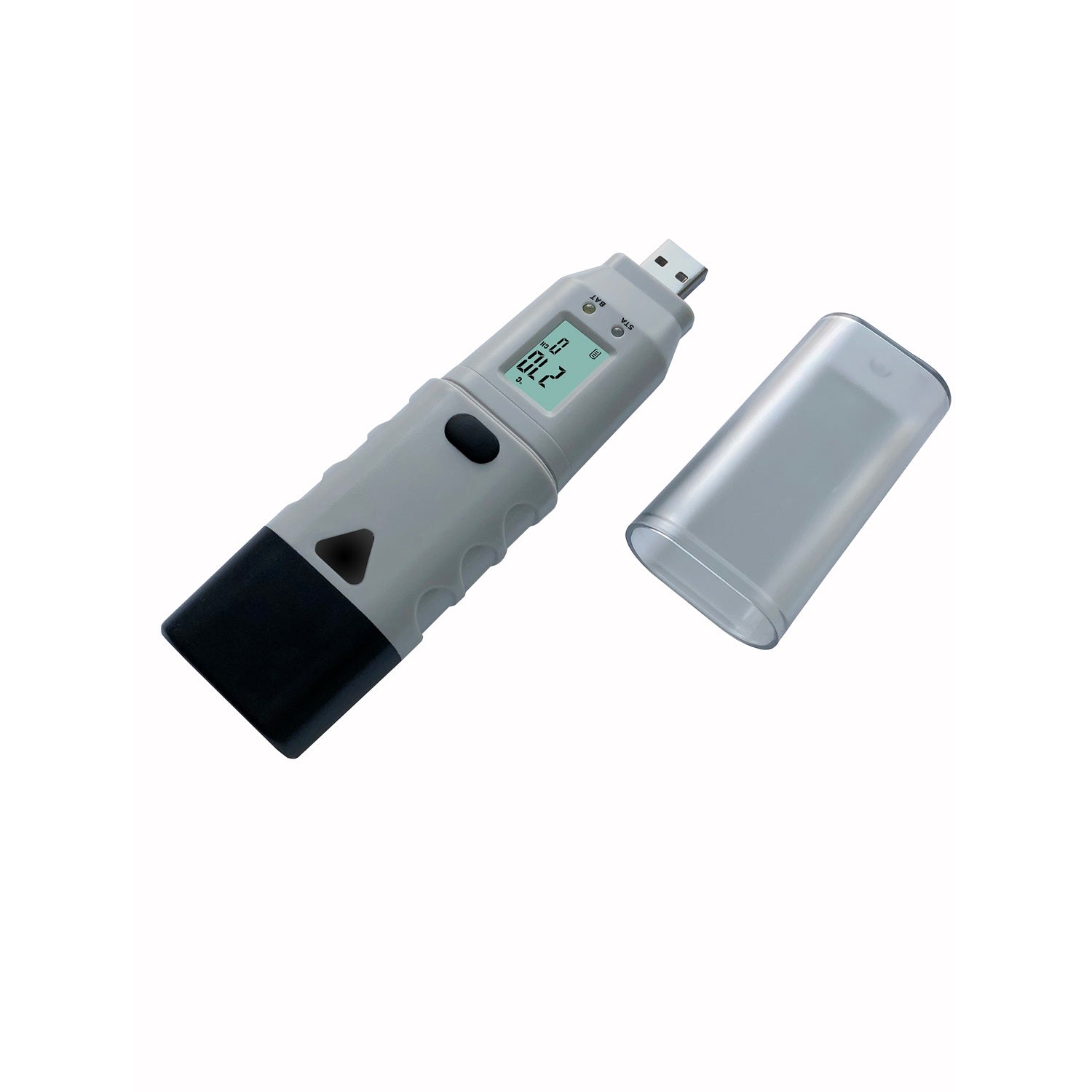

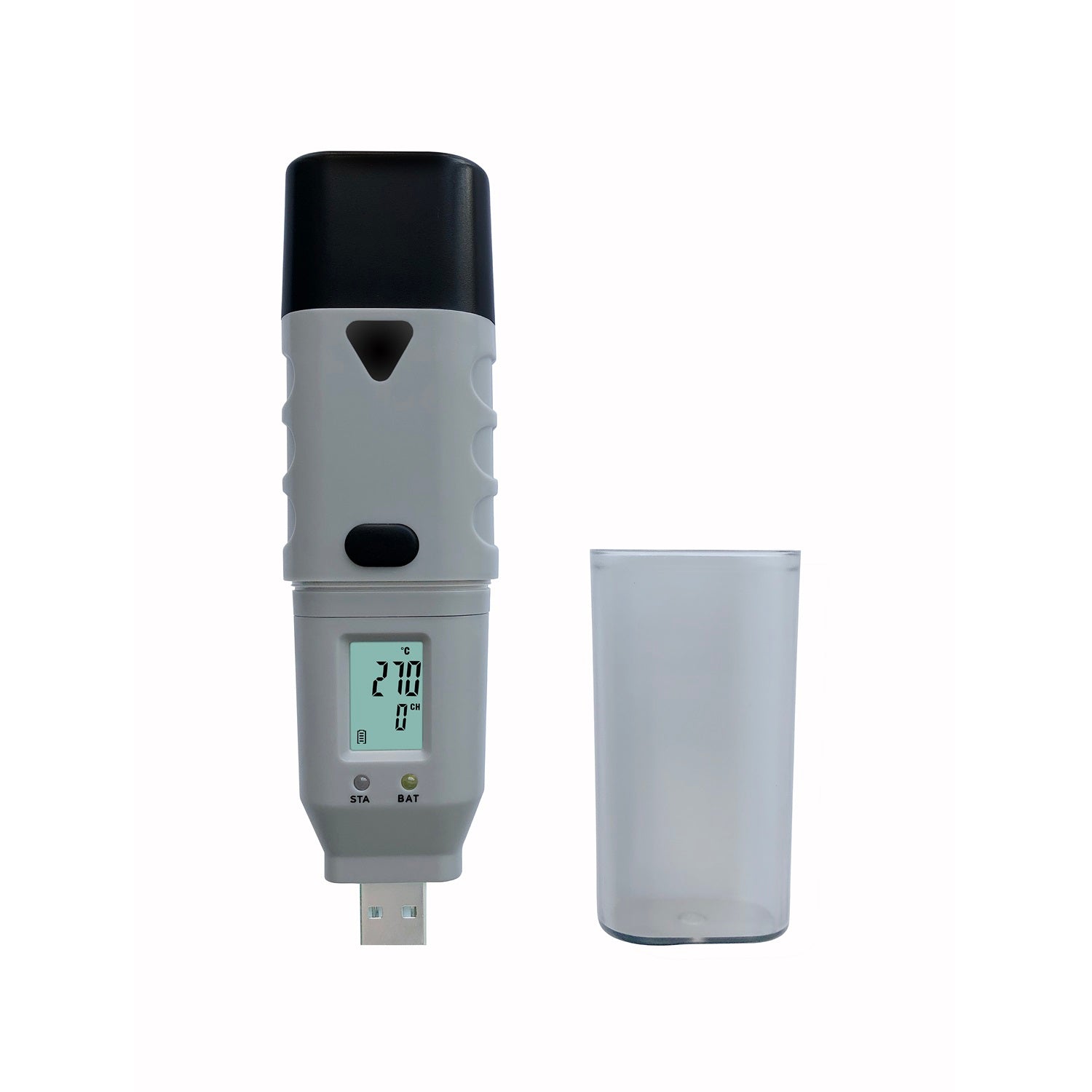

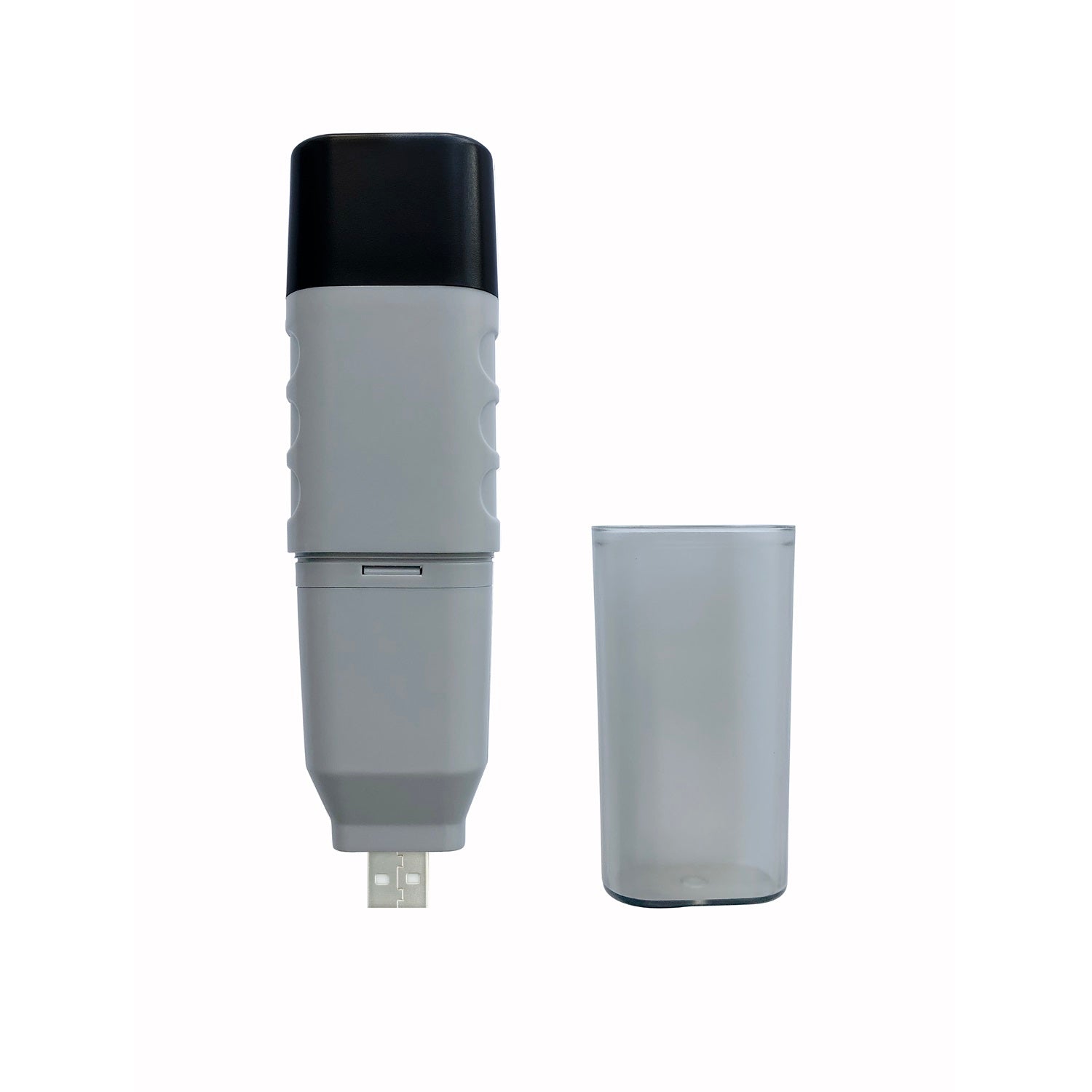

Multi-Use Thermocouple USB Data Logger w/ Display

This thermocouple data logger supports K, J, T, R, and S type thermocouple probes and delivers dependable temperature monitoring across a wide range. The logger itself has an accuracy of ±(0.5% + 1) °C. Configuration is easy using the DGraphPro software, available for download. Users can set it to start recording immediately or after a delay based on their preferences.

After logging is completed, simply connect the data logger to a PC with DGraphPro installed. Downloaded data is saved in .dlg format and can be exported as txt, csv, xls, jpg, or bmp files for streamlined reporting and analysis. The software provides flexible and efficient data management and visualization.

In real-time mode, users can display live temperature readings directly on their computer as the logger records voltage signals, offering immediate insight into environmental or process conditions.

Each unit includes a calibration report issued by a laboratory conforming to ISO/IEC 17025:2017, with traceability to SI units via NIST. The logger can be recalibrated using DGraphPro software with two-point calibration, either by qualified calibration laboratories or by returning it to our facility for service.

This thermocouple data logger is well-suited for a broad range of temperature-critical applications, from low to extremely high temperatures, making it a reliable choice for research, industrial, and environmental monitoring tasks.
