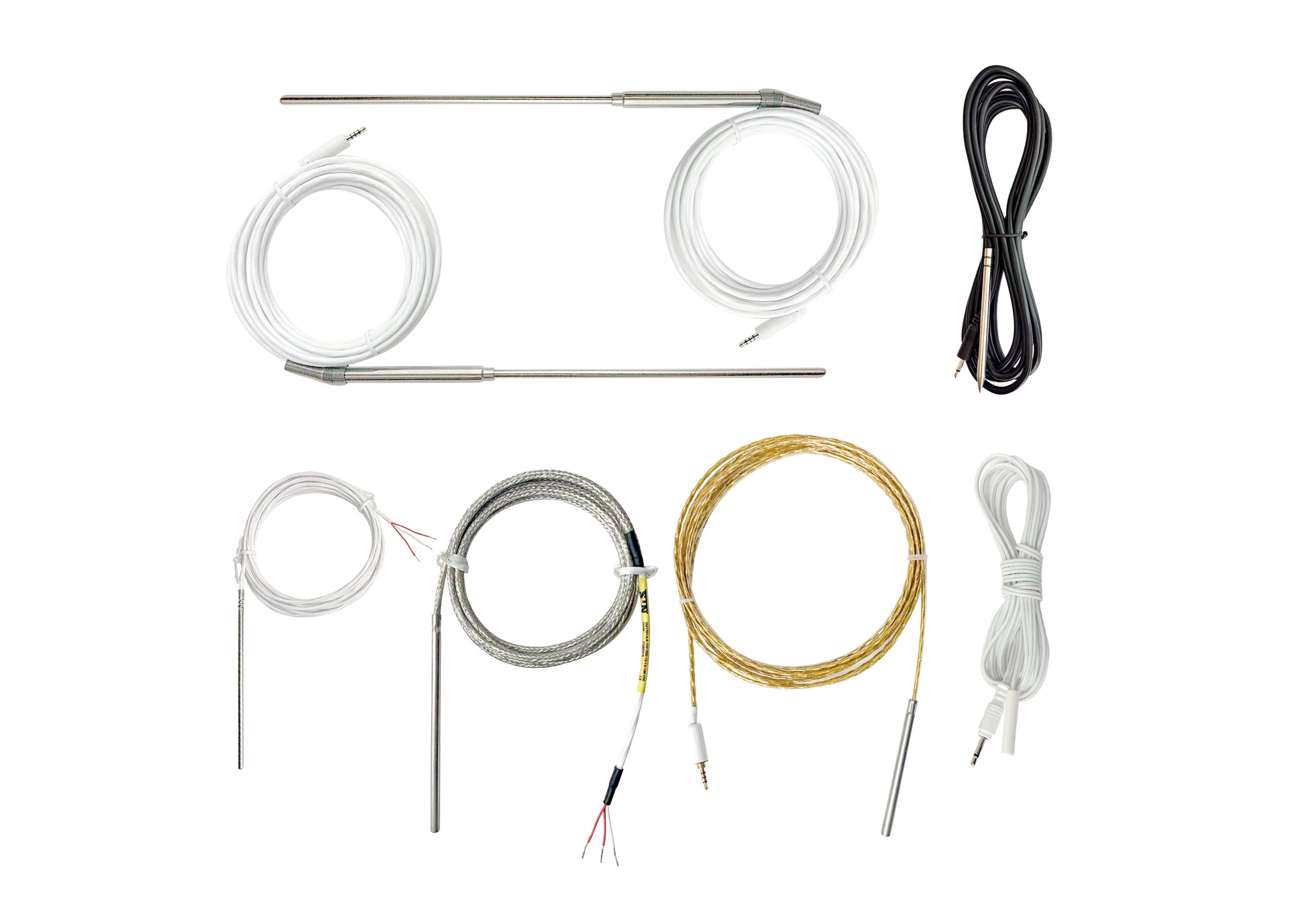

The temperature monitor consists of two key components: the probe and the meter. While the probes are designed for durability and reliable performance in most environments, occasional loss or damage can occur during field use. To ensure uninterrupted operation, STN offers premium interchangeable temperature probes built with Class 1/3 B platinum Pt1000 sensors for superior accuracy and stability.
Each stainless-steel probe is individually tested and shipped with full test data, ensuring traceability and confidence in performance. These interchangeable probes can be used directly with compatible STN temperature monitors, allowing users to replace damaged or missing probes quickly without needing to send the entire device back for service.
|
Sensor |

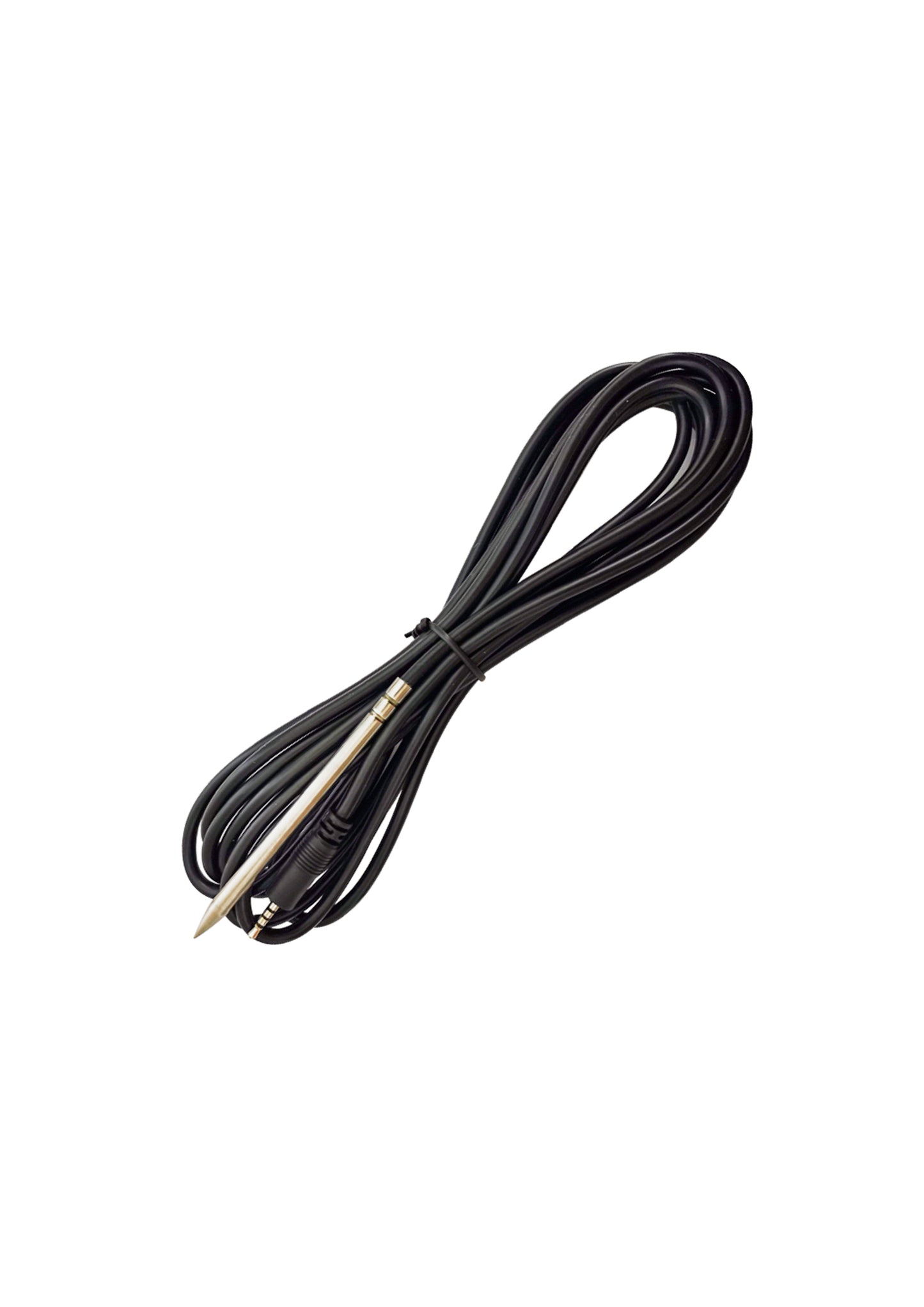

Premium Platinum Pt1000 Class 1/3 B Sensor |
|
Accuracy |
±0.2°C when used with a compatible meter |
|
Assembly form/Part number |

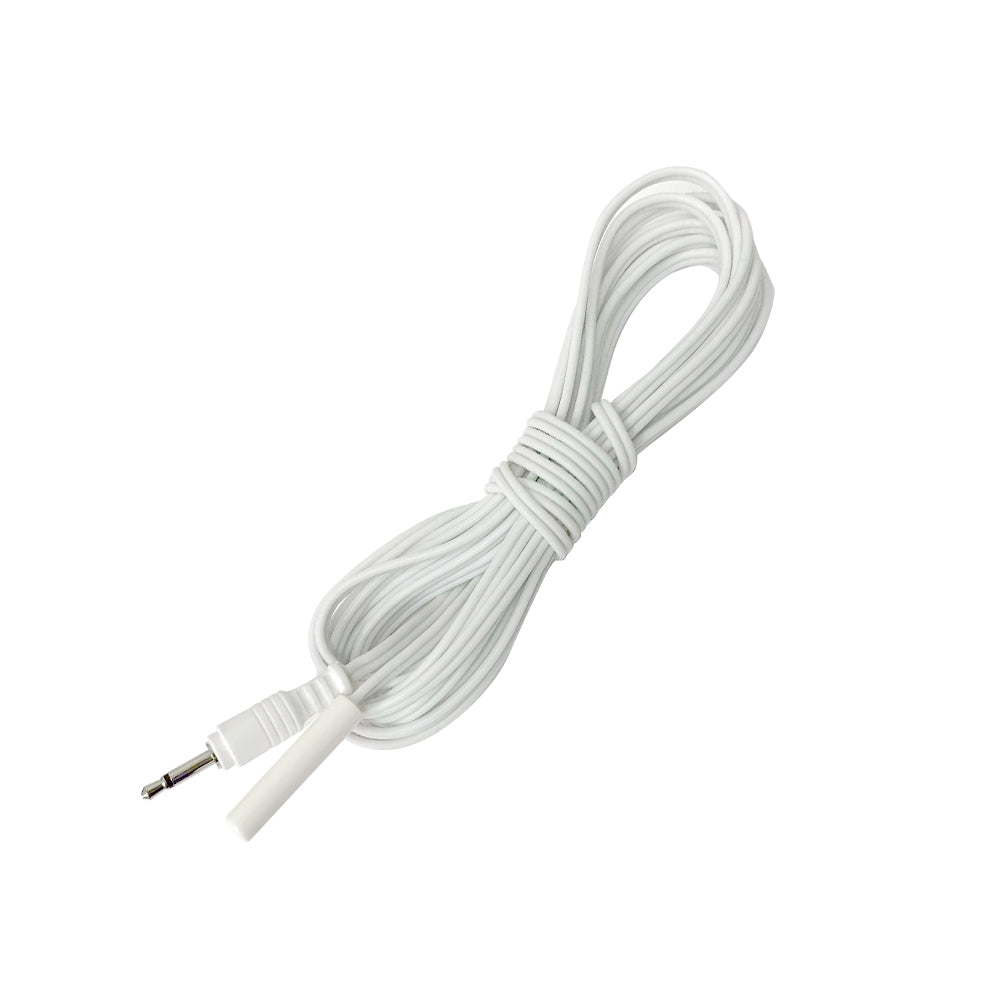

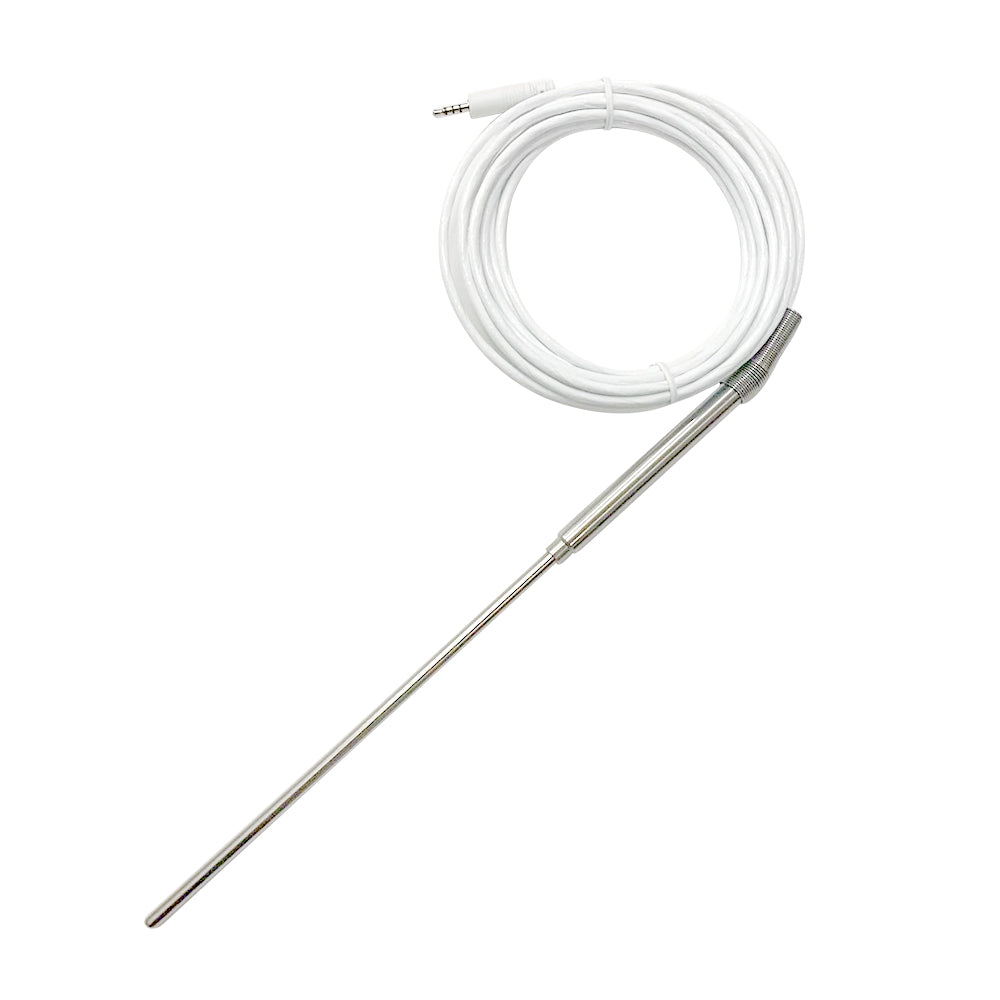

PTFE bullet: Φ5mm*25mm stem/MP1003 Stainless steel: Φ5mm*75mm stem/MP1002 Stainless steel: Φ4mm*150mm stem/MP1001 |
|
Probe connector |
2.5 mm audio jack |
|
Wire length |
3m |
|
Compatible meter |
PTFE bullet for part number of S312XX Stainless steel probe for part number of S312XX, S322XX, S332XX |
