Temperature Transmitter Display
- Regular price
- $80.00
- Regular price
-
- Sale price
- $80.00
- Unit price
- per
- DIP Switch Settings and Functions
- Low and high alarm mode
- Write protection
- Display and program mode
- Range programmable
- Display unit with powerful programming functions optional
Model number: TET200
Shipping: 3-5 Business Days
Couldn't load pickup availability
Have a question?
Notified by email when this product becomes available
$80.00
- Description
- Specifications
- Manual and Resources

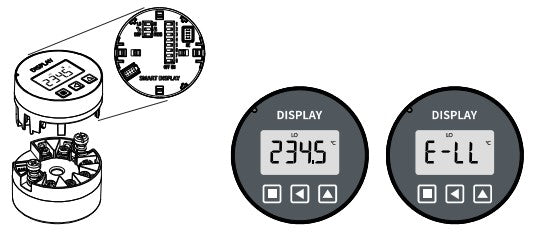

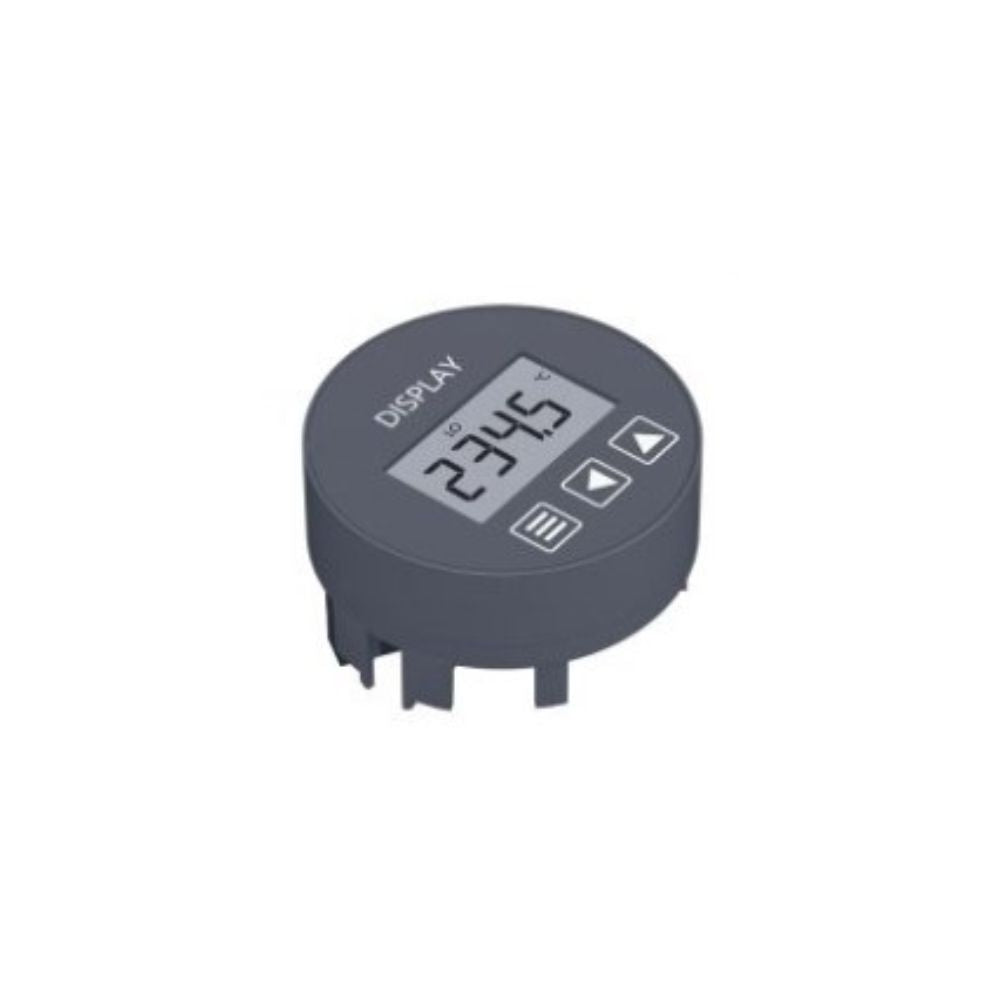

This pluggable display unit displays the current measured value, temperature unit, and preset fault output—either “low current alarm” or “high current alarm”.

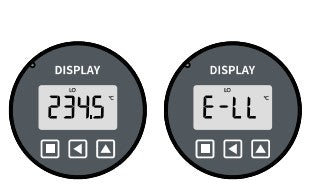

When a measurement loop fault occurs, an error code flashes on the display. Refer to the error code description for details as below “4. Error code description”.
The DIP switches are located on the back of the display unit and are used for configuration, such as setting the low current alarm, high current alarm, write protection, and range selection.
Touch buttons are located on the front of the display unit. These buttons allow for further customized software configuration.

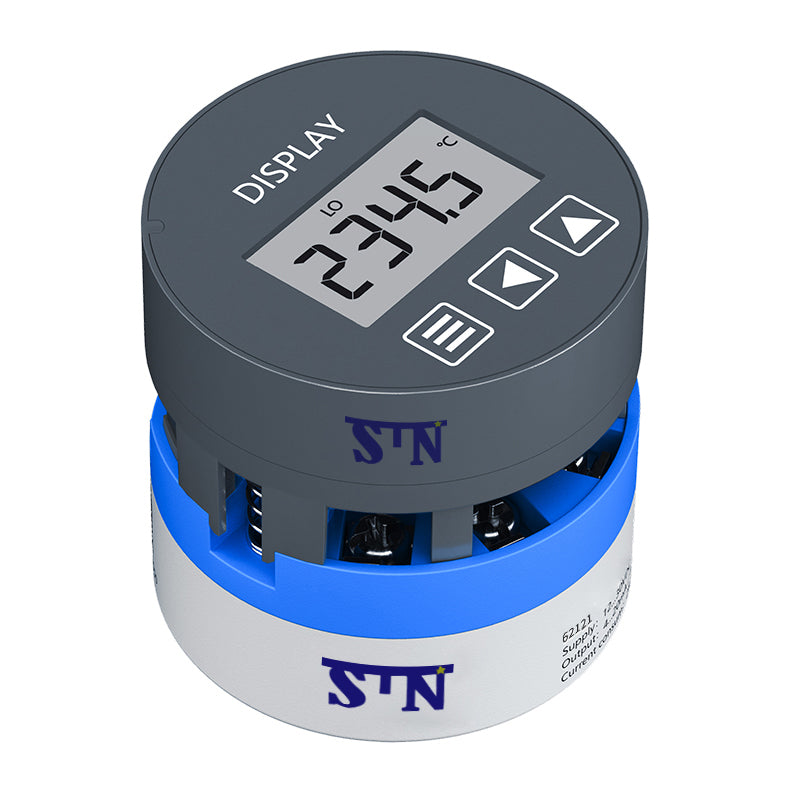

When a module-type temperature transmitter with a display unit is installed in a field enclosure, a cover with a display window must be used.
|

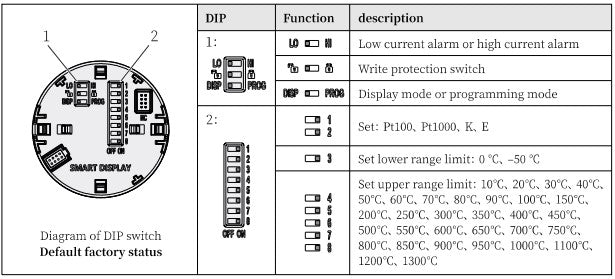

DIP Switch Settings and Functions |
|
|
Fault output |
Low Current Alarm or High Current Alarm |
|
Write Protection Switch |
Yes |
|
Display Unit |
Display Mode or Programming Mode |
|
Set Sensor Type |
Pt100, Pt1000, K E |
|
Set lower Range Limit |
0°C, -50°C |
|
Set Upper Range Limit |
10 to 1300°C |
|
Error code Display |
Yes |
|
Display and program mode |
Optional |
|
Button mode or Program mode |
Optional |
|
Unit |
°C, °F, K, mV, Ω |
